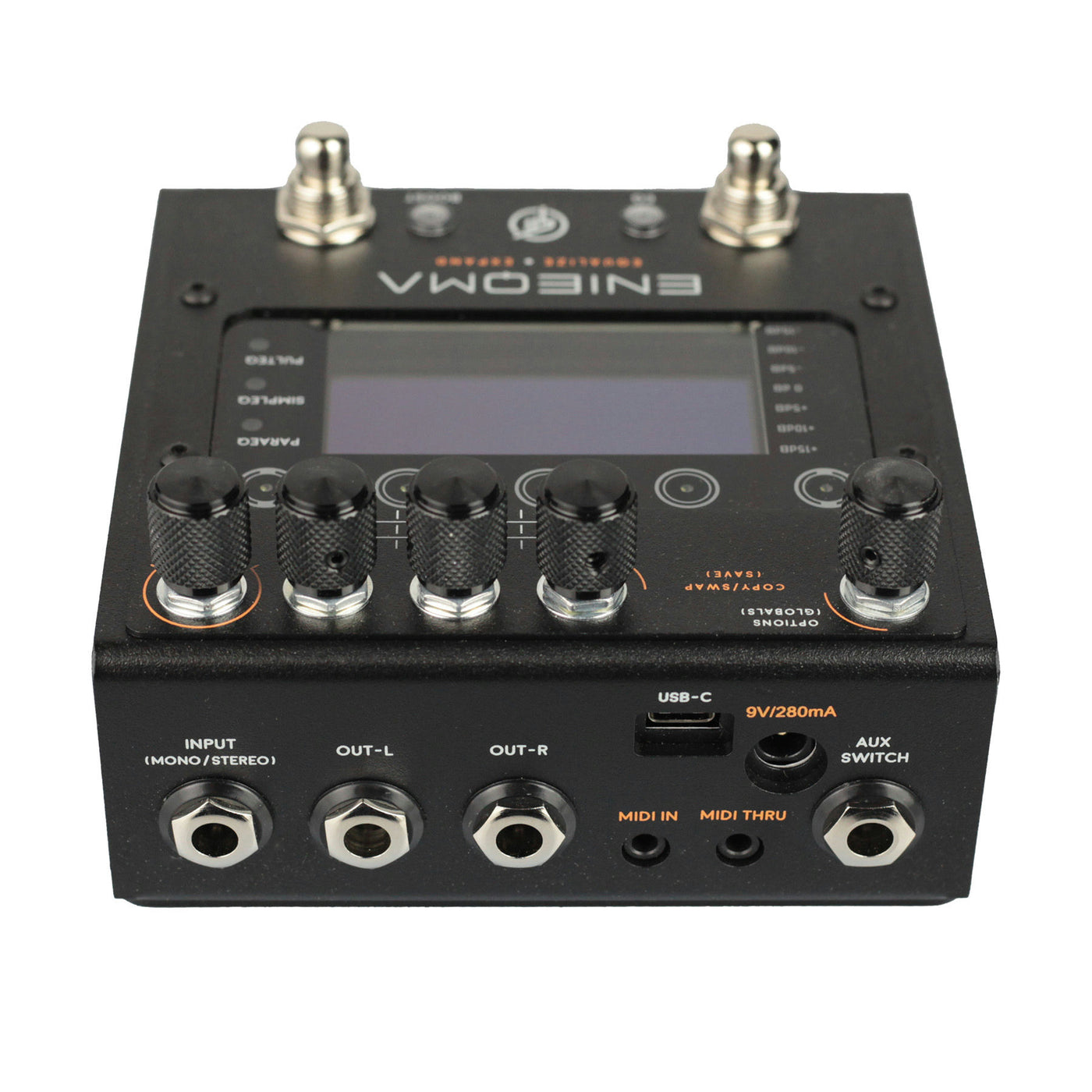

GFI System Enieqma Multi-Band Equalizer Pedal

Enieqma is a multipurpose equalizer that contains a 5-band full parametric EQ, a ‘simple EQ class’ featuring 7 classic tone stacks, and a 3-band midrange equalizer that emulates the Pultec Midrange EQ processor.

Enieqma features full stereo capabilities, flexible routing, and an extensive library of ready-to-use prototype EQs that covers everything from simple lowpass/highpass filters to elaborate cabsim filters, and beyond.


Features:

• Input impedance: 1 Meg Ohm.
• Output impedance: 500 Ohm.
• Max input level: +7.23 dBV = 9.45 dBu = 2.3 V RMS = 6.5 Vpp. (EQ set to ‘flat’ curve, input level is set to 0dB, and Boost is OFF)
• Max Boost level: +15dB.
• SNR: 114 dB typical.
• Frequency Response: +/- 1dB, 20 to 20 KHz.
• AD/DA: 24-bit, 48 KHz .
• Bypass: Buffered.
• Input jack: 1/4” TRS (Tip: Left channel, Ring: Right channel).
• Output jack: 1/4” TS.
• MIDI In/Thru jacks: 1/8” TRS (Type A).
• Power source: 9VDC (negative center, 2.1 mm inner diameter)
• Current draw: 280 mA.
• Dimension: 12 x 12 cm (4.7 x 4.7 inch)
• 2 channel EQ + Boost.
• The two processing channels can be linked or configured/run independently.
• 3 EQ engines (Parametric EQ, Simple EQ, and Pultec Midrange EQ emulation) with the ability to combine and run two engines simultaneously.
• 64 presets.
• Master Volume and Input Level trim.
• Built-in libraries of ready-to-use ‘Prototype EQs’ for quick tone-shaping workflow.
• Optional Limiter and Stereo Expansion processings.
• 3 routing configurations: Mono to Stereo, Dual Mono, and Stereo to Mono.
• True EQ response curve display provides excellent visualization of the frequency response.
• Aux switches control in
